Zirconia Ceramic Materials
Zirconia is a white crystalline oxide composed of zirconium (Zr) and oxygen (O), with the chemical formula ZrO₂. Pure zirconia exists in three crystalline phases at different temperatures: monoclinic (m-ZrO₂), tetragonal (t-ZrO₂), and cubic (c-ZrO₂).
The transition from the tetragonal to the monoclinic phase is followed by a volume increase by about 3-5% which could cause cracks in ceramics when they cool. To address this issue stabilizers (such as yttrium oxide Y₂O₃, magnesium oxide MgO calcium oxide CaO and so on.) are usually used to stabilize high-temperature crystals, which results in the “phase transformation toughening” mechanism and significantly increasing the strength of fractures of the material.
Zirconia (ZrO₂) ceramics due to their outstanding mechanical properties and distinctive physical and chemical properties, hold an essential place in the field of advanced ceramics. They are also known in the industry as “ceramic steel,” it is extensively utilized in high-tech areas like aerospace, biomedicine electronic and communications as well as precision machinery which makes it one of the essential materials used in modern manufacturing.

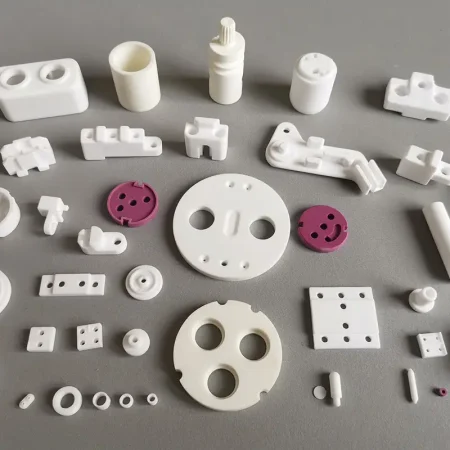

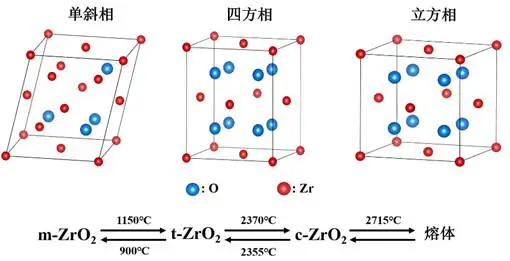

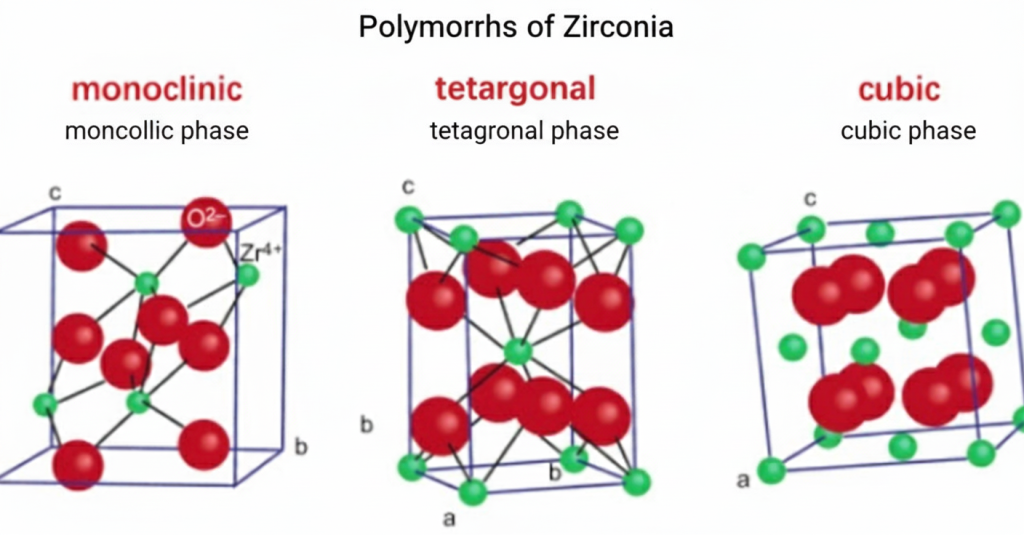

Crystalline Forms of Zirconia
Zirconia(ZrO₂) widely known in the industry as “ceramic steel” in the advanced material industry and has its outstanding durability, mechanical strength and thermal stability as well as the resistance against wear to its distinctive polymorphic character. In contrast to other single-phase technical clays zirconia is found in three distinct allotropic crystal structures (phases) according to temperature and chemical conditions:
- Crystal Structure: Belongs to the P2₁/c space group, exhibiting relatively low crystal structure symmetry and a relatively loose atomic arrangement. The unit cell has monoclinic symmetry.
- Stability Conditions:Under normal temperature and pressure, zirconium dioxide exists in the monoclinic phase, which is the stable phase of zirconium dioxide at room temperature.
- Physical Properties:Density is approximately 5.65-5.68 g/cm³, and it has relatively low hardness. The crystal structure is prone to deformation under stress.
- Crystal Structure:A member to the P4₂/nmc group of space and has a tetragonal cell, and an ordered and regular arrangement of atoms, with the highest symmetry of crystals.
- Stability Conditions:As the temperature increases to about 1150℃, monoclinic Zirconia undergoes an elongation phase, which transforms into the Tetragonal phase. The Tetragonal phase is stable over the temperature range between 1150℃-2370℃.
- Physical Properties:The density is around 6.10 g/cm³, and the hardness and strength are enhanced when compared to monoclinic. The crystal structure has good stability at high temperatures .
- Crystal Structure:a member to the Fm3m space group and has an ideal cubic unit cell, and an extremely symmetrical arrangement of particles, making this the most homogeneous phase of zirconium dioxide crystals.
- Stability Conditions:If the temperature increases to 2370℃, the tetragonal portion of zirconium dioxide transforms to the cubic phase. It is stable over the range2370℃-2715℃ (melting the point).
- Properties: It has a density of about 6.27 g/cm³, and has the highest strength, hardness and thermal stability in addition, its structure shows outstanding performance even at temperatures of high.
These three crystalline forms of zirconia sort of change into one another based on various temperatures and chemical surroundings, and what they’re used for, change a lot too, depending on the actual crystal structure. If you tune the temperature , include stabilizers, and use a few other techniques then the zirconia crystal framework can be tweaked so it fits the task requirements of different fields.
Zirconia Ceramic Core Performance and Advantages
Zirconia ceramics have extremely high hardness and strength, along with exceptional fracture toughness which is superior to other ceramics. The toughness of this material is due to its unique phase change and toughening mechanism. When cracks development, tetragonal zirconia particles change into monoclinic particles when stressed, absorbing the energy of cracks and hindering further crack expansion.
Property | Typical Value | Unit | Remarks |
Density | 5.85 – 6.05 | g/cm³ | High density |
Vickers Hardness | 1200 – 1400 | HV | Excellent wear resistance |
Flexural Strength | 900 – 1200 | MPa | High load-bearing capacity |
Fracture Toughness | 8 – 12 | MPa·m^1/2 | Key characteristic of “ceramic steel” |
Elastic Modulus | 200 – 220 | GPa | Good rigidity |
Beyond the mechanical properties, zirconia ceramics have remarkable physicochemical stability.
- High Temperature Resistant:The melting point can be as high as 2715℃. Stable operation in high temperature environments.
- The resistance to corrosion:A strong resistance to chemical substances like acids, alkalis, as well as salts that are suitable for extreme environmental conditions.
- Thermal Conductivity: The thermal conductivity can be as low as a mere 2-3 W/(mK) This makes it an excellent thermal insulation.
- The Thermal Expansion Coefficient: Approximately 10.5 × 10⁻⁶/K, very close the metallic material (e.g. steel) and facilitating the bonding of composites and bonding with metallic materials.
- Biocompatibility:The material is non-toxic and non-irritating, it has good biocompatibility with human tissues, making it a perfect biomedical substance.
Zirconia Ceramic Properties Table
Property | Unit | Z-100 | Z-200 | Z-300 | ZM-100 | ZB-100 |
|---|---|---|---|---|---|---|
Material Composition | – | ZrO₂-Y₂O₃ | ZrO₂-Y₂O₃ | ZrO₂-Y₂O₃ | ZrO₂-Y₂O₃ | ZrO₂-Y₂O₃ |
Color | – | White | White | White | Yellow | Blue |
Density | g/cm³ | 6.00 | 6.03 | 6.04 | 5.70 | 6.03 |
Flexural Strength | MPa | 900 | 950 | 1100 | 450 | 1100 |
Compressive Strength | MPa | 2100 | 2200 | 2300 | 1600 | 2300 |
Elastic Modulus | GPa | 200 | 210 | 220 | 210 | 220 |
Fracture Toughness | MPa·m¹/² | 9.0 | – | 9.0 | 5.5 | 7.0 |
Poisson’s Ratio | – | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 |
Hardness (HRA) | HRA | 89 | 90 | 90 | 88 | 90 |
Vickers Hardness | HV1 | 1250 | 1450 | 1450 | 1240 | 1450 |
Thermal Expansion Coefficient | 10⁻⁶/K | 10 | 10 | 10 | – | 10 |
Thermal Conductivity | W/(m·K) | 3 | 3 | 3 | 3 | 3 |
Thermal Shock Resistance | ΔT°C | 400 | 400 | 400 | – | 400 |
Max Use Temp (Oxidizing) | °C | 1000 | 1000 | 1000 | 850 | 1000 |
Max Use Temp (Reducing/Inert) | °C | 1000 | 1000 | 1000 | 850 | 1000 |
Volume Resistivity (20°C) | Ω·cm | 10¹³ | 10¹² | 10¹² | 5×10¹³ | 10¹² |
Dielectric Strength | kV/mm | 19 | 15 | 17 | 19 | 17 |
Dielectric Constant (1MHz) | – | 28 | 30 | 30 | 27 | 30 |
Dielectric Loss (tanδ) | – | 2×10⁻³ | 2×10⁻³ | 2×10⁻³ | 2×10⁻³ (1GHz) | 2×10⁻³ |
How Are Zirconia Ceramics Manufactured?
Raw material preparation
Molding process
Sintering process
Precision machining and inspection
Raw material preparation
- Zirconia Raw Material Acquisition: Zirconia is usually pulled from zircon (ZrSiO₄) using chemical routes or sometimes electromelting style approaches. You know, it’s kind of the standard workflow people cite.
- Chemical method: Zircon is reacted with alkaline stuff like sodium hydroxide, yielding sodium zirconate, then it goes through acidification, precipitation, and calcination , to end up with zirconia. The outcomes are typically high purity, but the whole process feels a bit convoluted, also it tends to be complex and costly.
- Electromelting method: Zircon is heated and melted at very high temperatures inside an electric arc furnace and reducing agents such as carbon are added so the reaction can move forward. After that zircon breaks down into zirconia and silicon dioxide , and the silicon dioxide leaves as a gas, which sort of concentrates the zirconia. This approach is generally less expensive, and it also fits large scale production better.
Molding process
- Dry Pressing: Zirconia powder gets blended fairly well with a proper amount of binder and lubricant, then put into a mold and compressed using a press, to compact, and to give it the final shape. Overall it’s a pretty straightforward route and works best when the parts are kinda plain in geometry and on the smaller side, but the uniformity of the green body density is, unfortunately, relatively weak.
- Isostatic Pressing: The powder is loaded into an elastic mold and then put inside a high pressure container. Pressure is delivered evenly through a liquid medium so the powder gets compacted and shaped at the same time from basically all directions. With this approach you tend to get green bodies with more consistent density, plus higher strength too. It also tends to fit products with complicated shapes and more demanding performance needs
- Slip Casting: Zirconia powder is mixed with water, dispersants , and some other additives, to make a slurry which is then poured into a porous gypsum mold. As the gypsum absorbs water, it slowly drains the slurry, while the particles settle on the mold wall, building up the intended form. This method is commonly used when making big ceramic parts with complex contours, yet the resulting green body density and strength are usually lower.
- Hot Press Casting:At a slightly higher temperature about 60-100°C , zirconia powder gets stirred together with binders like paraffin wax to make a slurry. Then that slurry is pushed into a metal mold using compressed air. After enough time under holding pressure and letting it cool, the wax mold is taken out, and afterward it’s dewaxed to leave the green body. Overall, this approach gives green bodies with rather accurate sizes, plus good production speed, but it tends to be a poor choice for making really big components.
- Tape Casting:Zirconia powder is mixed in depth with organic binders, and also plasticizers so it turns into a more viscous suspension . After that, the suspension is spread evenly onto a conveyor belt with a doctor blade so the thickness stays controlled. Once drying is done , you end up with a thin-film type green body. This technique is nice for thin film materials , though it really depends on keeping the process parameters in check, because small changes can shift the final result.
- Injection Molding:Zirconia powder is combined with a thermoplastic binder so the mixture becomes an injection molding feedstock. It’s then injected into a mold by an injection molding machine. The benefit is that you can create items with complicated geometry and fairly high precision, and production efficiency is also strong, but the downside is that you need well-qualified raw materials as well as reliable equipment.
Sintering process
- Pressurized Sintering:resulting green body is put in a high-temperature furnace, and then heated to a specific temperatures (usually 1300-1500℃) in an atmospheric setting which allows the particles within the body’s green to move and bind with one another and achieve densification. The most popular sintering technique, easy to perform, but it involves high temperatures to sinter and a significant amount in energy.Hot pressuring sintering Temperature and pressure are both applied simultaneously during the sintering process permitting that the body’s green to expand faster under pressure. This technique can reduce the temperature of sintering and increase the performance and density that the body’s green.
- Hot Isostatic Pressing (HIP):A green part is put into the vessel with high pressure, and high temperatures as well as high pressure is both applied simultaneously to allow that the body’s green to increase its density under uniformly dispersed pressure. This process can yield high-density, high-performance ceramics.
- Microwave Sintering: This technique uses the interaction of the electromagnetic field generated by microwaves as well as the material in order to create heat within the material, leading to rapid Sintering. This technique has the benefits in uniform heating a short time to sinter, and lower energy consumption. However, it is a high-demanding process for raw materials as well as the process parameters.
- Spark Plasma Sintering (SPS):The pulsed current is utilized to create a discharge between the powder particles, resulting in high temperatures and pressure, which allows for the green part of the body to grow quickly. This technique has a low temperatures of sintering as well as a shorter sintering times, and allows you to produce high-density, fine-grained ceramics.
Precision machining and inspection
- After sintering , zirconia ceramics can need a bit more handling, like grinding, polishing, cutting, drillings, or other treatments, so the part ends up with the right size accuracy and surface feel. Also, in some unusual use-cases, a surface coat or a modification process might be needed , to boost the overall performance, and to add specific functionality that the ceramic should have.
Applications of Zirconia Ceramics
Biomedical field
Electronics and information technology field
Aerospace field
Automotive manufacturing sector
Mechanical manufacturing field
New energy sector
Optical communication field
Biomedical field
- Dental Restorations: These are used for making dental crowns, bridges, inlays, and even implants, so you get great biocompatibility, pretty aesthetics, high strength as well as wear resistance. In practice they do replace a broken tooth, bring back the chewing function, and make the smile look right again.
- Artificial Joints: Like artificial hip or knee joints, they rely on high strength and solid wear resistance, plus biocompatibility too, which helps lower the body’s rejection response to the implant and also helps extend its lifespan, over time.
- Surgical Instruments: some surgical tools use zirconia ceramic material. It’s corrosion-resistant and rust-proof and it keeps its sharpness for a long time, so it fits well where you need top hygiene and exactness during operations.
Electronics and information technology field
- Integrated Circuit Substrates: As a high-performance insulating material, it ends up being used in the packaging and in the substrate parts of integrated circuits, with excellent electrical insulation, thermal stability, and solid mechanical strength. That combination, helps the whole electronic device improve its performance, and also boosts reliability in practice, even when conditions get rough.
- High-Frequency Insulating Materials: In high-frequency electronics—like 5G communication systems, or radar equipment—zirconia ceramics can serve as an insulating layer, or even as the dielectric material. This is meant to fit the demands of high-frequency signal transport, while cutting down signal loss and interference. It’s a pretty direct way to keep the signal cleaner, and the outcome more stable.
- Piezoelectric Ceramics: By using its piezoelectric behavior, it becomes suitable for making sensors, transducers and actuators. You can see it in pressure sensors, acceleration sensors, and ultrasonic transducers. It’s commonly applied across automation control, medical diagnosis, and environmental surveillance, because it responds well to changes and makes conversion happen in a controlled manner.
Aerospace field
- Engine components:like turbine blades , combustion chamber liners, and nozzles—lean on their resistance to high temperatures, their high strength, and their low density, so engine efficiency and reliability go up , and at the same time aircraft weight is reduced.
- Thermal protection systems:when used as thermal tiles, or as thermal protection coatings, they help shield the aircraft from erosion caused by hot air flow at high-speed flight, or during atmospheric re entry, keeping the aircraft structure safe.
- Satellite antenna supports:using their lightweight nature, high rigidity, and dimensional stability, they get turned into structural housings for satellite antennas, which improves antenna pointing accuracy and overall stability.
Automotive manufacturing sector
- Engine components: For example, piston crowns, as well as valve seat rings, make use of the superior durability and thermal insulation of zirconia ceramics. They enhance engine efficiency, fuel efficiency, and power efficiency, as well as prolong the service life of engines.
- Oxygen sensors: They are used to measure the amount of oxygen in exhaust of engines, allowing precise control of the fuel injection rate, increasing combustion efficiency and decreasing emissions.
- Braking system components include: The brake discs and pads in some of the top cars make use of zirconia ceramics, with a higher temperature resistance and wear resistant and braking performance, reducing the distance to braking, and improving safety while driving.
Mechanical manufacturing field
- Ceramic bearings: With corrosion resistance, wear resistance as well as high temperature resistance and self-lubrication with no oil, they’re suitable for high-speed mechanical transmission systems that require high precision in extreme environments, like tiny cooling fan, high-precision instruments machines tool spindles.
- Ceramic valves:are used in the petroleum, chemical and metallurgical industries for controlling pressure and flow They offer benefits like corrosion resistance, wear resistance, as well as high temperature resistance. They are able to replace conventional metal valves, which can extend time of service.
- Cutting tools, such as the ceramic cutter tool, drills or milling cutters they have strong, high-strength and wear resistance, making them ideal for the processing of high-hardness materials such as cast iron steel that has been hardened, as well as high-temperature alloys. This improves the efficiency of processing and accuracy.
New energy sector
- Solid Oxide Fuel Cells (SOFCs) By utilizing their conductivity to oxygen ions as an electrolyte SOFCs allow efficient conversion of fuel in addition to power generation providing benefits such as efficient energy conversion and broad fuel flexibility and low environmental pollution.
- Solid-State Battery Separators: Applied in solid-state batteries to act as an Ion Conduction Channel or separation layer for electrodes, they boast outstanding mechanical and chemical stability and ion conductivity, increasing the energy density and security of the battery.
- The Solar Thermal Use: an insulating or heat-absorbing material for solar collectors, its resistance to high temperatures as well as its corrosion resistance and high thermal conductivity increase the effectiveness of solar energy utilization.
Optical communication field
- Fiber optic ferrules & sleeves: used inside fiber optic connectors, they are made with serious precision, low insertion loss, and solid stability, so fiber optic signals go through efficiently, and the connection stays dependable. In practice, they become kind of critical parts for optical communication networks, you know, like the small but important stuff that keeps everything working.
- Optical isolators and circulators: zirconia ceramics bring the optical plus mechanical traits into play. These components are made so you can form an optical isolator or a circulator, and that helps optical signals move in one direction, then route properly, which in turn boosts the performance and overall stability of optical communication systems.
Frequently Asked Questions About Alumina Ceramics
What are the main advantages of zirconia ceramic?
Zirconia ceramic is valued for its high strength and fracture toughness.
Compared with most technical ceramics, it is more resistant to cracking and impact.
This makes it suitable for applications where mechanical reliability is critical.
Is zirconia ceramic stronger than alumina ceramic?
Zirconia ceramic generally has higher fracture toughness than alumina ceramic, which means it is less brittle under mechanical stress.
Alumina, however, may offer better wear resistance and thermal stability in certain conditions.
The best choice depends on how the component fails in real operation.
What is yttria-stabilized zirconia (YSZ)?
Yttria-stabilized zirconia is zirconium oxide combined with yttrium oxide.
This stabilization improves phase stability and toughness.
It allows the material to maintain strength under load and thermal stress.
Can zirconia ceramic be used in high-temperature environments?
Zirconia ceramic performs well at elevated temperatures and has low thermal conductivity.
It is often used where heat insulation or thermal stability is required.
For long-term exposure or rapid thermal cycling, operating limits should be carefully evaluated.
Is zirconia ceramic suitable for wear or sliding applications?
Zirconia ceramic can be used in wear applications, especially where impact resistance is important.
For pure abrasive wear conditions, other ceramics such as alumina or silicon carbide
may offer better performance depending on system design.
How does zirconia ceramic perform in corrosive environments?
Zirconia ceramic shows excellent resistance to most acids, alkalis, and industrial chemicals.
This makes it suitable for chemical processing and corrosive operating environments
where metal components may fail quickly.
Can zirconia ceramic components be customized?
Yes. Zirconia ceramic components can be customized in material grade, size, shape,
surface finish, and tolerance.
Customization helps ensure proper fit and stable performance under specific operating conditions.
