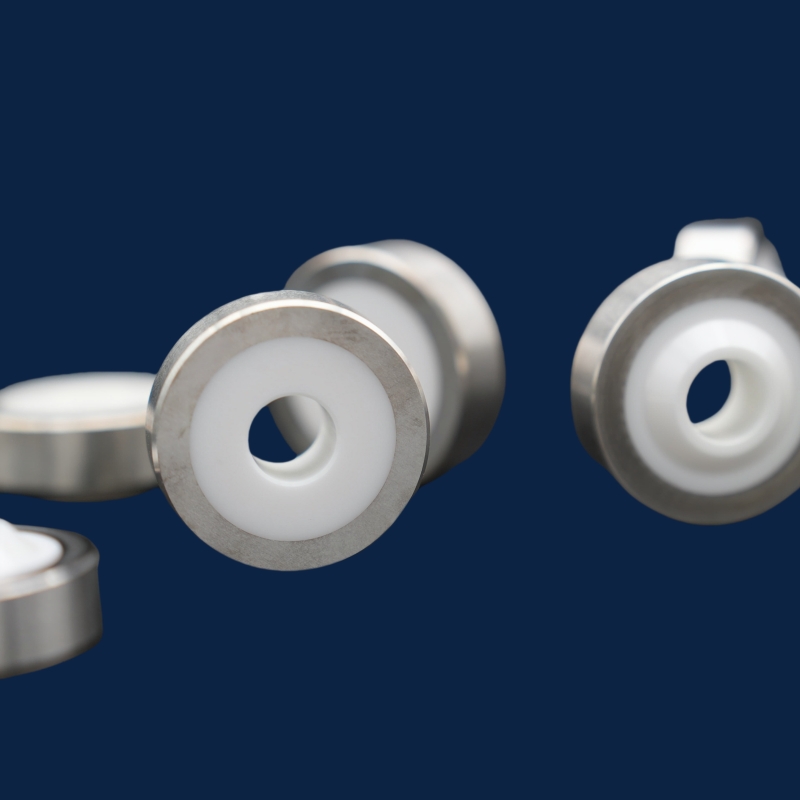

Advantages of Ceramic Composite Insulation Seal Sleeve
Dual Performance Combination
- Metal outer ring: Impact resistant, easy to install; flange / thread connection available.
- Ceramic inner ring: Insulation resistance >10¹²Ω, arc resistance ≥180kV/cm, prevents current leakage.
Résistance aux environnements extrêmes
- Operating temperature: -60°C to 1000°C; short-term up to 1200°C (Si₃N₄ type).
- Resists acid, alkali, oil, steam; compatible with pH 0–14 corrosive media.
Zero Leakage Sealing
- Hermetic metal‑ceramic sintering; helium leak rate <1×10⁻⁹ Pa·m³/s; pressure resistance ≥50MPa.
Customized Design
- Bore: Φ5–50mm; outer diameter: Φ20–200mm; épaisseur: 5–50mm.
- Conductive / insulating coating, shock-absorbing layer available.
Applications of Ceramic Composite Insulation Seal Sleeve
Power & Énergie
High-voltage switchgear bushings, transformer terminals, fuel cell seals, EV battery module insulation.
Chimique & Oil-Gas
Reactor agitator seals, high-temperature valve stem insulation, downhole sensor protection.
Transportation & Aérospatial
EV motor shaft insulation, aero-engine ignition seals, rocket fuel valve components.
Industrial Equipment
Laser cooling line seals, semiconductor vacuum chamber feedthrough insulators.
Why Choose JiFeng Ceramics?
Advanced composite process
Gradient sintering, seamless metal‑ceramic bonding, no thermal cracking.
Contrôle de qualité strict
100% isolation haute tension & salt spray test (1000h).
Livraison rapide
Standard 2 semaines; coutume militaire 4 à 8 semaines.
Service complet
Working condition matching selection, installation torque instruction and failure analysis available.
