Core Structure & CIP/SIP Design
All-Ceramic Flow Path (Zirconia / Alumina)
- High-temperature sterilization resistant: Withstands 135°C saturated steam (SIP), cycle life ≥5000 cycles.
- Low CTE: ≤7×10⁻⁶/℃ (matches 316L, prevents thermal cracking).
- Zero dead leg: Full-radius transition (R≥3 mm), Ra≤0.1μm.
High-efficiency CIP: Flushing velocity ≥2.5 m/s, cleaning efficiency ×3.
Hygienic Sealing & Quick Release
- Dynamic seal: EPDM / FFKM (resists NaOH / HNO₃).
- Quick-release: DIN 11851 / ISO 2852, disassembly within 30s.

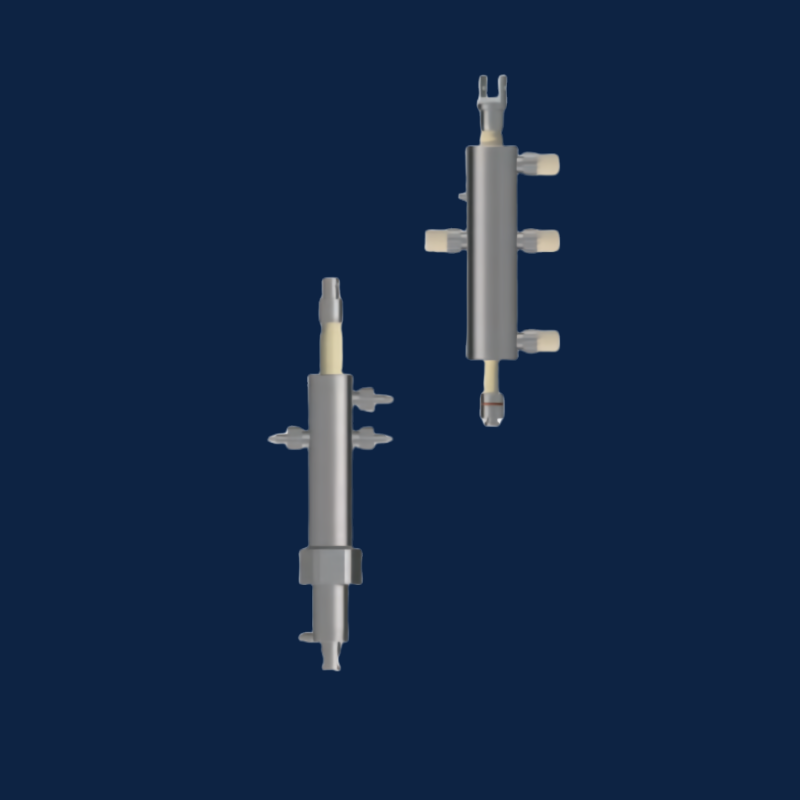

Applications of CIP-SIP Ceramic Pump
Biopharmaceutical & Vaccine Production
- Fermentation broth transfer & filling: 3× daily CIP-SIP (pH 2–12).
- FDA 21 CFR Part 11 compliant.
- mAb purification: Resists Protein A elution buffer (1M NaOH + 0.5M NaCl).
Food & Beverage
- Dairy aseptic filling: SIP every 4 hours.
- 3-A Sanitary Standards certified.
- Beer yeast transfer: Self-emptying, residual liquid <0.1 mL.
Cell & Gene Therapy
- Viral vector filling: Bioburden <0.1 CFU/100 mL after SIP.
- Wide temp range: -80°C to 121°C, no cold brittleness.
