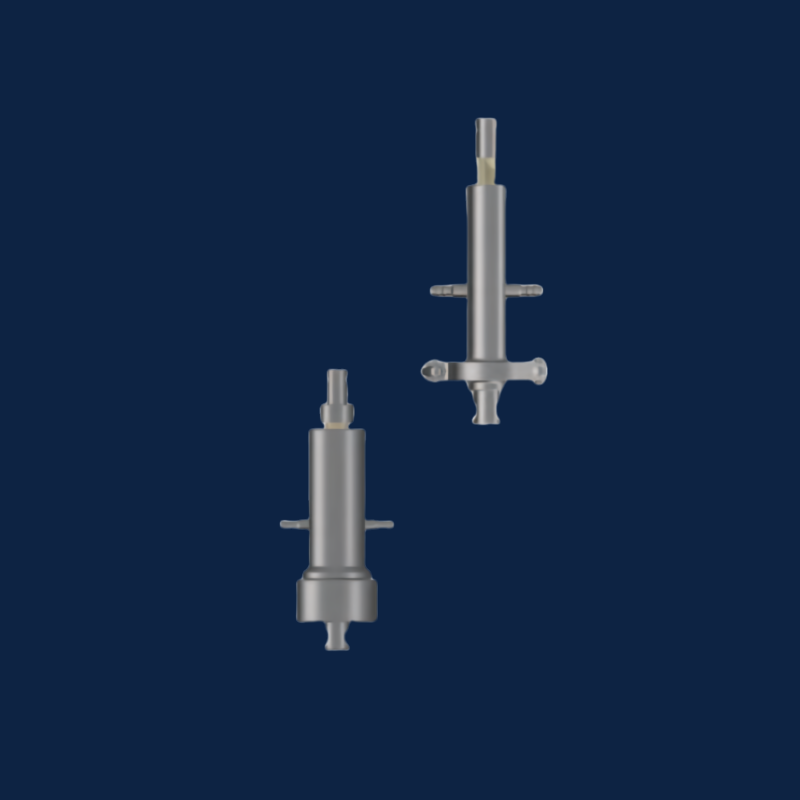

Slot Valve Plunger Pump

Slot Valve Plunger Pump

Slot Valve Plunger Pump adopts a precision ceramic slot valve structure with no mechanical valve core. It features low shear force, high precision, corrosion resistance, and self-cleaning ability. It is widely used in new energy batteries, food, pharmaceutical, semiconductor, and high-viscosity fluid precision filling scenarios.

Pump Rod Diameter / mm： 8 / 10 / 22 / 40 / 50

Min. Filling Volume / ml： 0.3 / 0.5 / 3 / 10 / 20

Max. Filling Volume / ml： 2 / 3 / 15 / 50 / 110

Filling Accuracy： ±1% – ±0.5% (for fluid ≤20000cp, no solid particles)

Send Inquiry Live Chat
  • Product Details
  • Technical Specifications

Typical Applications

  1. New Energy Battery Manufacturing

Precision electrolyte filling: Resists DMC/EC solvents (zero swelling).

Flow fluctuation ≤±0.5% (ensures cell consistency).

Nano Si-C slurry coating: Shear force ≤1 Pa・s (protects nano-materials).

  1. Food & Pharmaceutical

High-viscosity collagen filling: CIP/SIP autoclaveable at 132°C.

No mechanical valve design, prevents biofilm formation.

Jam/chocolate dosing: Self-cleaning flow path, residue ≤0.1 μL.

  1. Semiconductor & Optics

Photoresist supply: Anti-static ceramic (surface resistance ≤10⁶ Ω).

Pulsation rate ≤0.3% (ensures coating uniformity).

Plunger Diameter (mm)Minimum Fill Volume (mL)Maximum Fill Volume (mL)
80.32
100.53
22315
401050
5020110



Filling Accuracy: Repeatability of ±1% to ±0.5% for particle-free fluids with viscosity ≤20,000 cP.

Custom Solutions: The pump can be designed and manufactured to match the specifications of your main equipment.
